Description
Description:

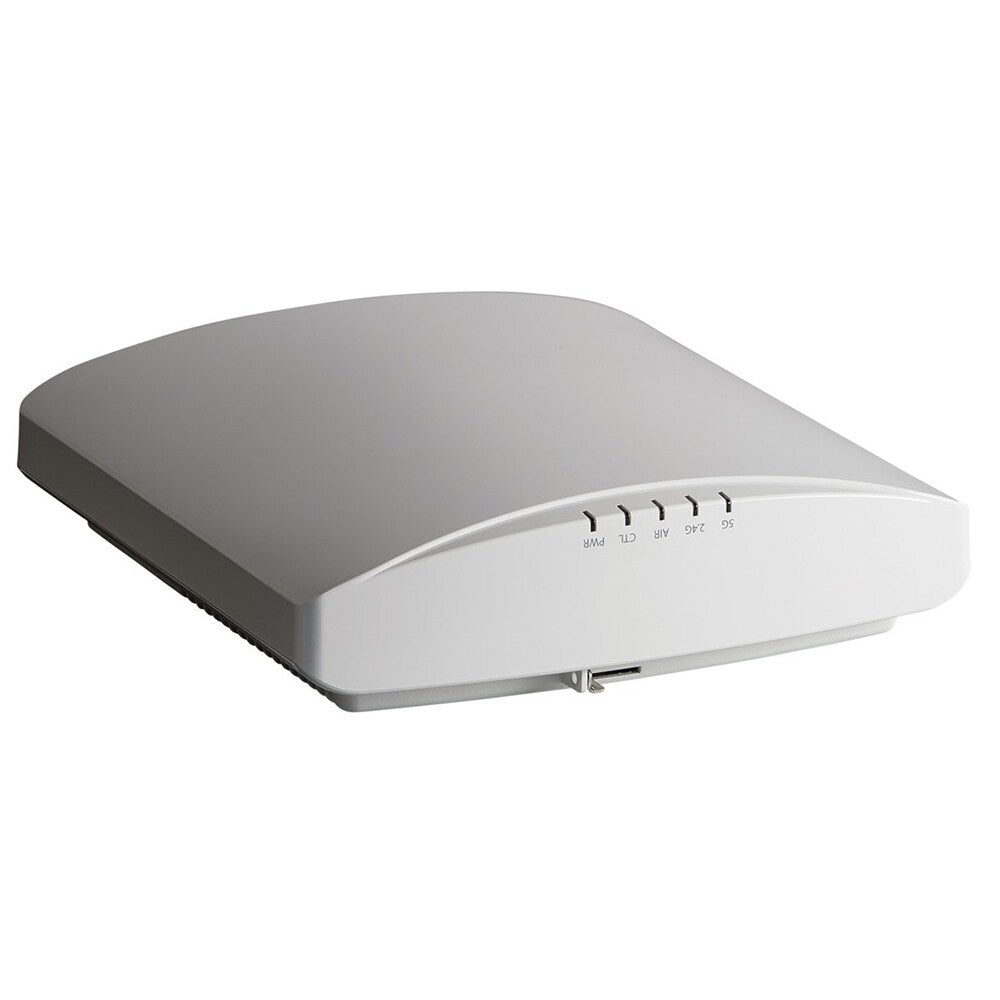

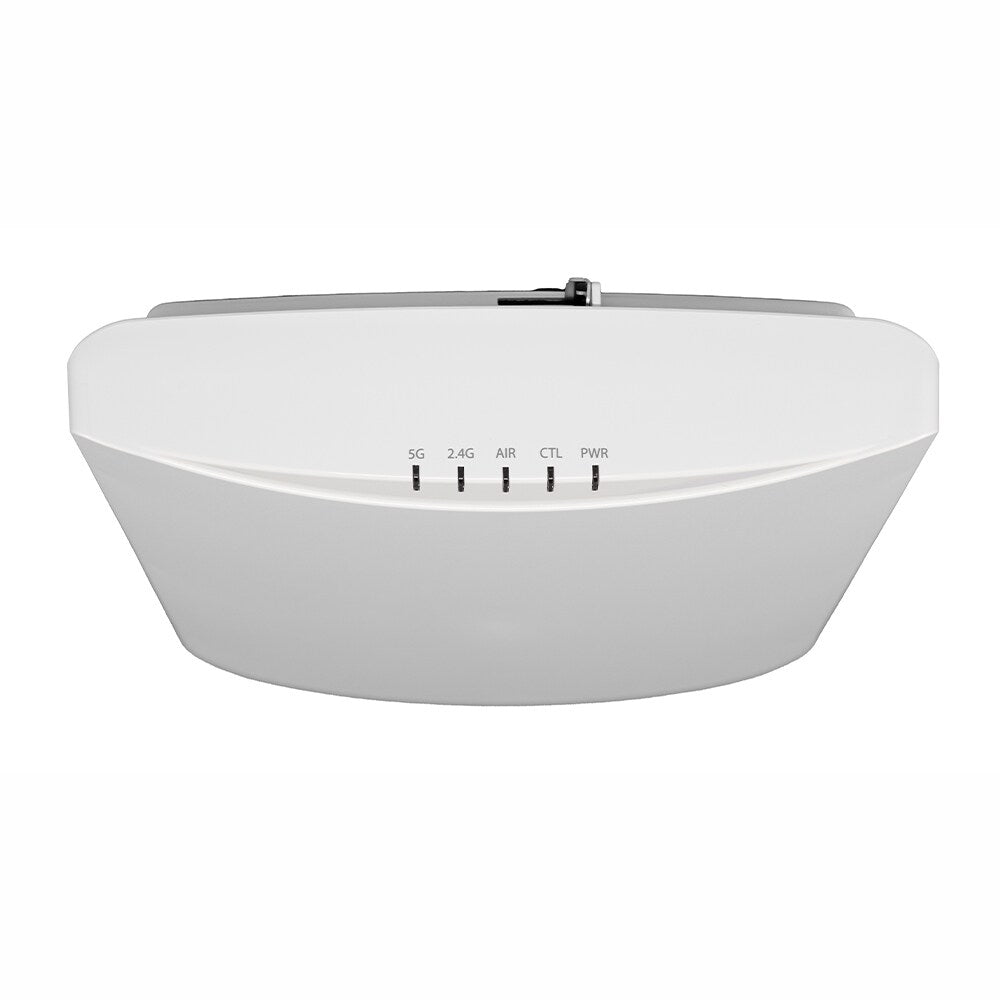

The Ruckus R850 ZoneFlex Access Point is a high quality dual band and dual concurrent Wi-Fi 6 AP that supports 12 spatial streams of 4 x 4:4 in 5GHz and 4 x 4:4 in 2.4GHz. The unit has OFDMA and MU-MIMO capabilities and efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra high dense environments.
Back haul capacity bottlenecks are mitigated by its 5 Gbps multigigabit Ethernet port.
The R850 is IoT and LTE ready and supports wireless standards beyond Wi-Fi in combination with the Ruckus IoT Suite and CBRS/OpenG modules.
This access point addresses the increasing client demands in transit hubs, auditoriums, stadiums, conference centres and other highly trafficked indoor spaces. It is the perfect choice for data intensive streaming and multimedia applications such as 4K video transmissions.
It supports latency sensitive voice and data applications with stringent quality of service requirements.
Features:
- Improve device performance with more simultaneous device connections with built in 8 spatial streams dual concurrent, 8 x 8:8 in 5GHz, 4 x 4:4 in 2.4GHz, MU-MIMO and OFDMA technology
- Support for up to 1,024 clients
- Ultra High Density Performance provides exceptional end user experience within stadiums, large public venues, exhibition centres and school auditoriums with the Ruckus Ultra High Density Technology Suite
- Reinforce security with WPA3, the latest Wi-Fi security standard and receive enhanced protection from man in the middle attacks
- Optimised multi Gigabit Wi-Fi performance delivered using built in 5GbE/2.5GbE ethernet ports to connect to multi Gigabit switches
- Manage the R850 with on premises physical or virtual appliances or the cloud
- Better Mesh Networking minimises complexity by reducing expensive cabling with SmartMesh that dynamically creates self forming and self-healing mesh networks
- ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels
- Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine and Ruckus analytics
Specifications:
| Antenna Patterns per Band | 4000+ |
| Antenna Gain | Up to 2 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 1024 |
| Controller Support | Ruckus' Cloud SmartZone Standalone Zone Director |
| Ethernet Ports | 1 x 1 GbE 1x 1/2.5/5 Gb/s |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate | 2.4GHz: Maximum 1148 Mb/s 5GHz: Maximum 4800 Mb/s |
| Radio Chains: Streams | 8 x 8:8 (SU-MIMO and MU-MIMO) |
| Rx Sensitivity at 2.4GHz and 5GHz | -91 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
| Dimensions | Height: 6cm / 2.36" Width: 24.96cm / 9.83" Length: 22.19cm / 8.74" |
| Weight | 1.53kg / 3.37lb |
| Certifications | EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity EC 61373 Railway Shock and Vibration EN 62311 Human Safety/RF Exposure UL 2043 Plenum WEEE and RoHS ISTA 2A Transportation |
User guides
Download User Guides:
Data Sheet R850
Ruckus Product Guide Brochure
Ruckus Accessory Guide
Access Points Look Up Guide
Ruckus Cloud Demo Guide
Technology Guide
Virtual SmartZone Essentials
Virtual SmartZone High Scale
Unleashed Portfolio
