Description:

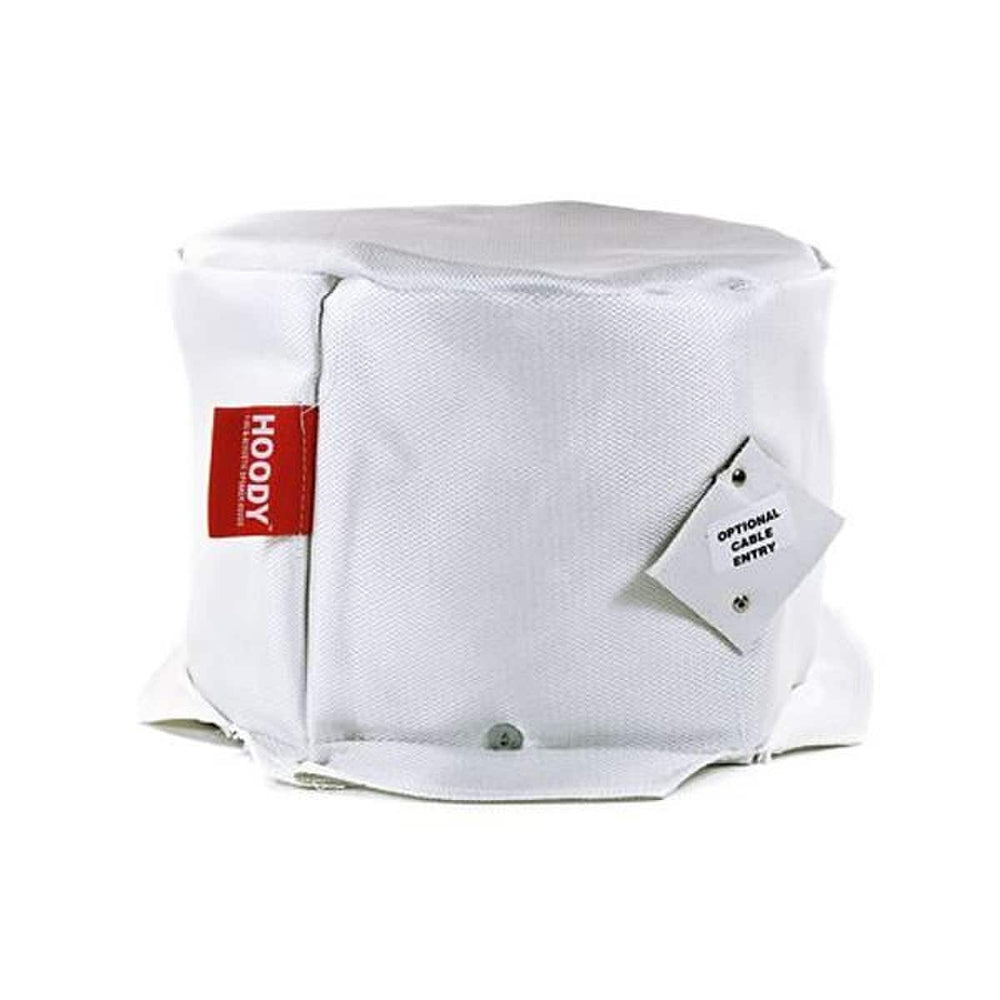

Hoody is a range of Fire and Acoustic speaker hoods that will bring all your installations into conformity with the latest IEE and Building Regulations for Fire and Acoustic integrity of ceilings. Due to it acoustic construction, the hood will also stop a large amount of backwards sound leakage from the speakers to the rooms above its location, making in ceiling speaker installation below a child's bedroom, for example, achievable.
It is suggested and recommenced that an Acoustic Fire hood is fitted to all ceiling speaker locations, but it is a requirement that hoods are fitted to all in ceiling speakers that are installed where a ceiling is rated for 30 mins or more to ensure compliance.
The Hoody range of Fire and Acoustic speaker hoods feature a fire rating of up to 90 minutes and are Parts B,L,C and E compliant and cover all makes of speaker designs from 5" to 7".
Features:
- Suitable for 5" to 7" speakers
- Prevents fire from penetrating the ceiling void and retains ceiling's fire protection integrity
- Reduces speaker sound travelling to floor above
- Acoustic rated for compliance with document L of the building regulations
- Lightweight and flexible cover can be fitted from below or above the ceiling
- Installed in seconds and maintenance free
- Can be used for retro fit or new build installations
- Can be used in suspended or plasterboard ceilings
- Fully complies with all UK and EU legislation under BS EN1363-1 2020 for up to 90 minutes which meets and exceeds Document B Building Regulations BS476 Part 23 and 21 relating to audio and fire dispersion in the home Parts E and F 2004
- Complies with 18th Edition IEE Regulations
- Tested to EN 6069 (1997)
Specifications:
| Compatible With | 5" to 7" speaker |
| Acoustic Rating | Compliance with Document L of the Building Regulations |
| Material | Lightweight and flexible cover |
| Dimensions | Diameter: 265mm / 10.43" Depth: 160mm / 6.3" |
| Applications | Can be used for retro fit or new build installations and in suspended or plasterboard ceilings |
| Legislation Compliance | Fully complies with BS EN1363-1 2020 for up to 90 minutes. Exceeds Document B Building Regulations BS476 Part 23 and 21 relating to audio and fire dispersion in the home: Part E and F 2004 Complies with 18th Edition IEE Regulations Testing Standard: EN 6069 (1997) |
User guides
Download User Guides:
Fitting Instructions
Fire Test Information
Lane Top Farm Case Study
