Description
Description:

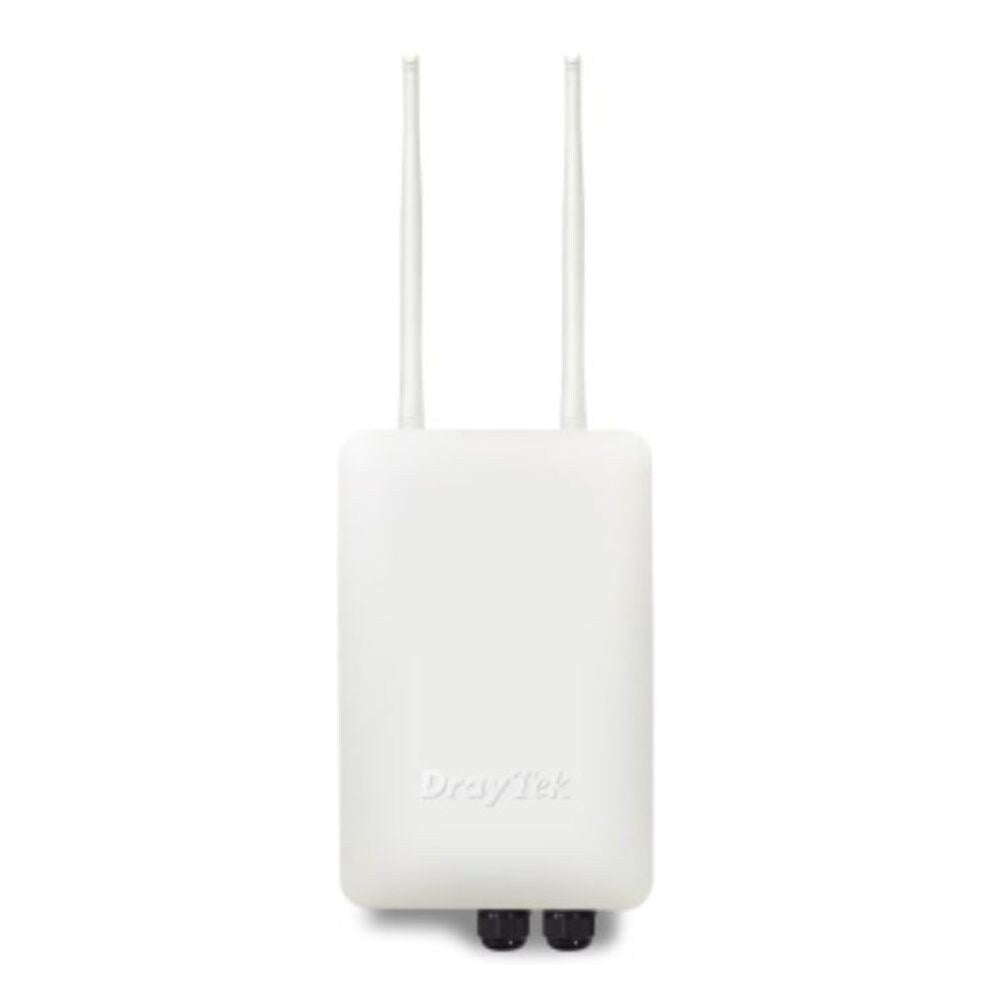

This access point is a dual band 802.11ac wireless AP and can be used a part of a DrayTek Mesh Wireless solution, being designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi Fi dead zones. DrayTek's Mesh system connects and intelligently manages a group of VigorAPs over wireless. The self optimising Mesh ensures your wireless network nodes are always using the fastest path to the Mesh Root.

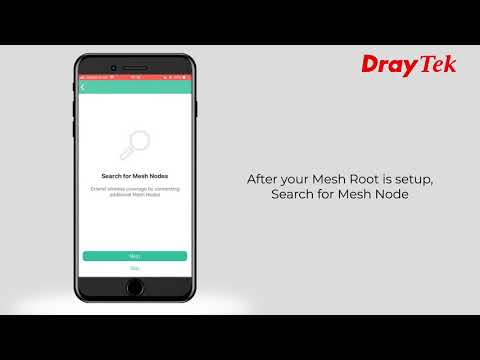

The AP918-R is powered through its Gigabit Ethernet interface with Power over Ethernet, for convenient installation, whilst the DrayTek Wireless app simplifies setting up your network.
Optionally configure and monitor through one of DrayTek's management platforms, VigorACS cloud, VAP Management or directly via the AP's Web Interface.
The DrayTek AP 918R can be pole or wall mounted.
Features:
- Outdoor mesh wireless access point, being IP67 rated
- Ideal for permanent outdoor installations
- AC1300 - 11ac Wave 2 dual band wireless with omni directional antennas
- Gigabit Ethernet port with PoE input
- Centrally managed or standalone operation
- Allows simplified set up of networks

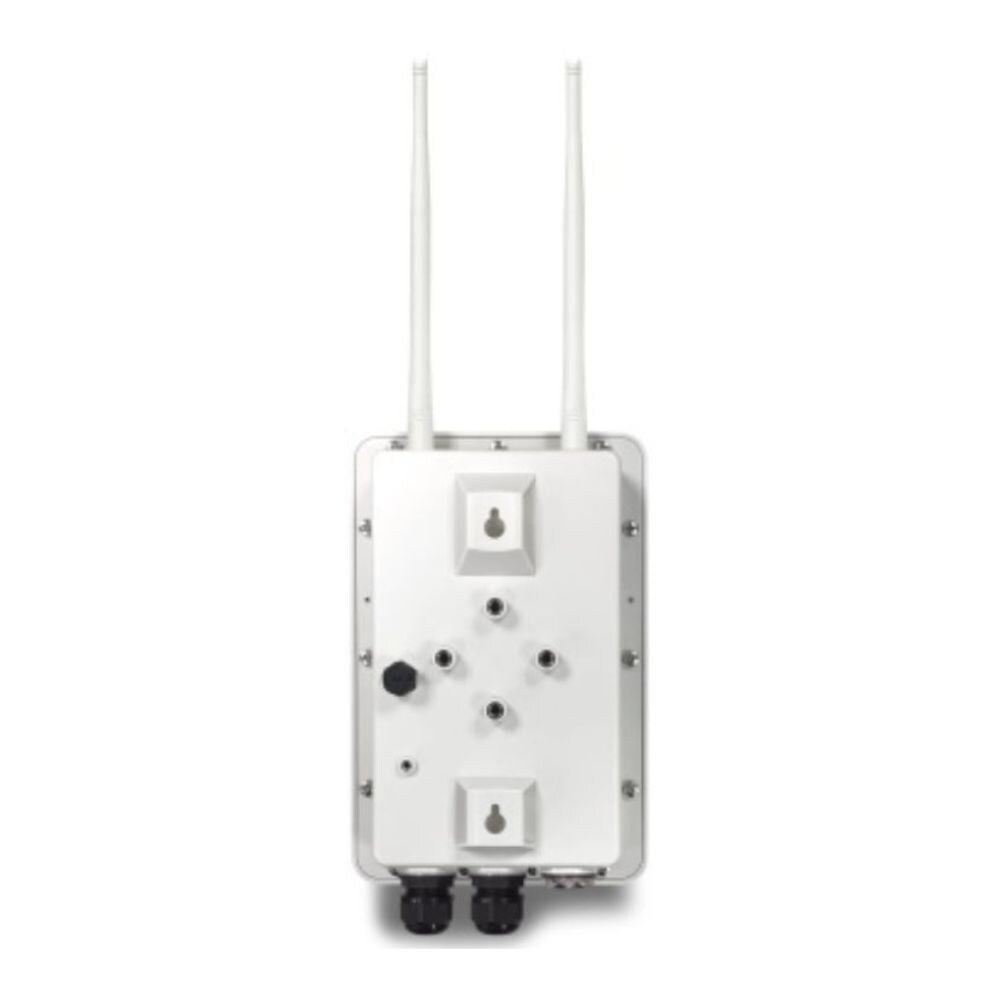

- Pole or wall mounting
Specifications:
| Antenna Type | 2 x Omni directional TX/RX dual band wireless antenna |
| Antenna Gain | 3dBi at 2.4gHz |
| Physical Interfaces and Controls | 1 x Gigabit Ethernet LAN Port, RJ-45 (PoEPD input) Factory reset button, covered Antenna Connectors: 2 x RP SMA type Built in temperature and humidity sensor |
| Concurrent Users | Up to 128 clients per radio |
| Wireless LAN Compatibility | Frequency band 2.4 GHz and 5.8GHz, simultaneous operation |
| Wireless Performance | AC1300 Class Wireless Access Point |
| PHY Rate |
2.4GHz: 400Mbps 5GHz: 866Mbps |
| Supported Rates | 2.4GHz: 802.11b, 802.11g, 802.11n 20 / 40MHz Up to 300Mb/s total Wi Fi throughput (PHY Rate): 802.11b/g/n: 300Mbps PHY rate (150Mb/s per Spatial Stream) 256-QAM: 400Mbps (200Mb/s per Spatial Stream) 5GHz: 802.11ac (Wave 1 and 2) / 802.11n / 802.11a 20 / 40 / 80 MHz Extended 5GHz band - channels 100 to140 DFS/TPC Support Multi user MIMO Up to 866Mb/s total Wi-Fi throughput (PHY Rate): 802.11a/n: 300Mb/s PHY rate (150Mb/s per Spatial Stream) 802.11ac: 866Mb/s PHY rate (433Mb/s per Spatial Stream) |
| Wireless Management Features | 802.1q VLAN Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz) Multi SSID over Mesh Wireless Client Status list in WUI MAC Cloning Built in DHCP Server and DHCP Relay Station Control: Time limit wireless connectivity per Station (e.g. 1 hour) and set allowed reconnection time (e.g. 1 day) Device Object/Group Control: Schedule Internet access for individual devices or groups • Wireless Auto On/Off: Disable wireless if VigorAP is unable to ping specified host |
| Power | Max power consumption: Up to 18W Up to 12W output with 802.3at power source Up to 18W output with Vigor PoE600 PoE injector power source |
| Operating Temperature | -40°C / -40°F to 70°C / 158°F Relative Humidity: Up to 95% non condensing |
| Ingress Protection Rating | IP67 Outdoor Use |
| Mounting Options | Pole mount Wall mount |
| Dimensions | Height: With antenna and port covers 460mm / 18.11" Without antenna and port covers 244mm / 9.61" Width: 161mm / 6.34" Length: 72mm / 2.84" |
| Weight | 1kg / 2.20lb |
| Certifications | RoHS and CE compliant |
| Included | 2 x Stainless adjustable pipe clamps Ground wire |
User guides
Download User Guides:
Data Sheet
DrayTek Data Book
Quick Start Guide
User Manual
