Description:

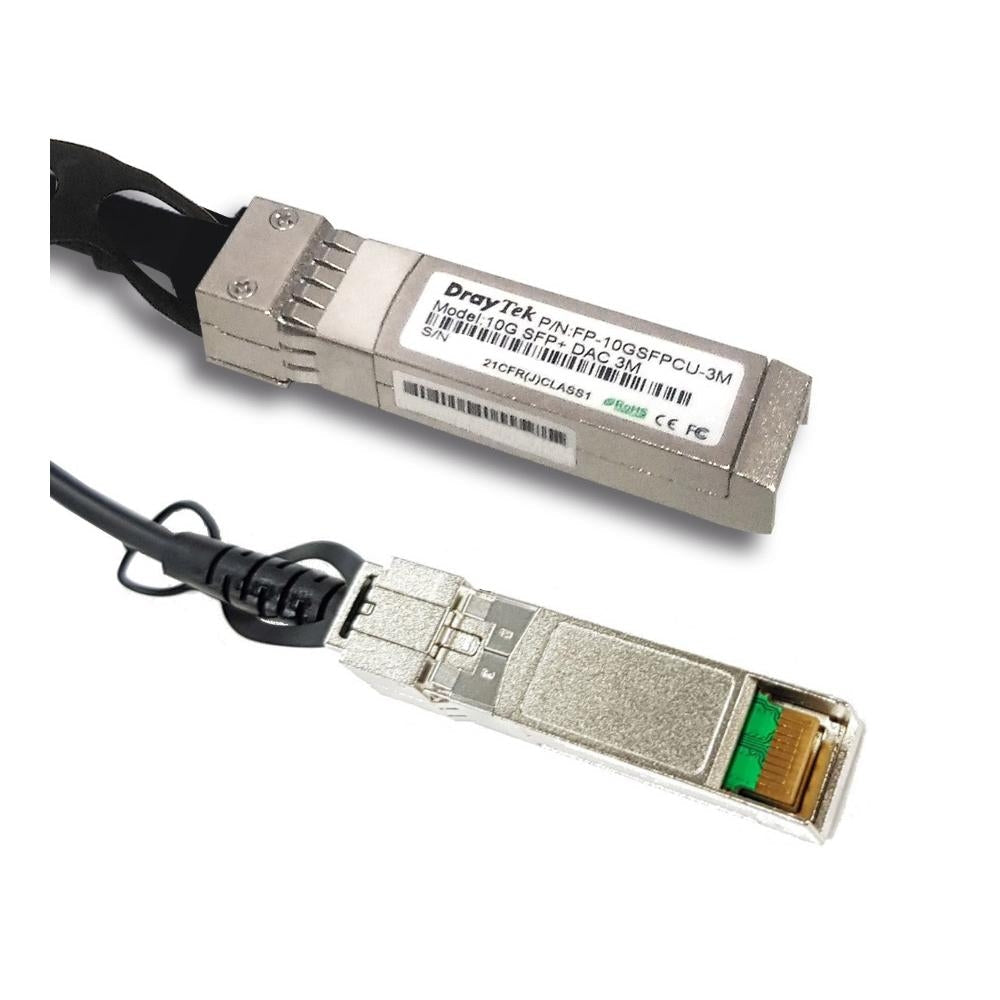

The DAC-CX103 from DrayTek is a cost effective interlink cable between switches, routers, servers and storage devices, which supports speeds up to 10Gb/s. DrayTek's SFP cables connect directly to the SFP module port of the devices, such as any DrayTek switch or router which has an SFP or SFP+ port.
The DrayTek direct attach cable significantly simplifies the connection process and reduces cost by connecting the SFP module ports on two devices similarly to an RJ-45 network cable, instead of using SFP to optical fibre transceivers or SFP to RJ-45 transceivers. This will also ensure reliable and consistent operation.
The DAC-CX10 is one piece and as there are no removable RJ-45 or fibre cables to be concerned with.
The DAC-CX10 support up to 10Gb/s being only limited according to the speed supported by the connected devices. If you are connecting between two devices whose SFP ports support 10Gb/s, the bandwidth is significantly higher than if you were to use the regular RJ-45 ethernet/CAT6 ports. Maintaining such speed is particularly important in high volume applications such as server or storage device to switch or network. If both connected devices support 'port trunking' you can use two DAC-CX10 cables to increase bandwidth even further, but equally, even on a 1Gb/s SFP port, these cables can be useful to make use of all ports without tying up an RJ-45 port that you need for other purposes.
The DAC-CX10 module locks securely into place when fitted into a switch to avoid unintended removal and is only removed by pulling the tab to unlock it from the SFP module slot.
Features:
Please note: Transfer speeds must support 10Gbps SFP+ for 10Gbps operation
Specifications:
| Compatible With | Vigor Switches G2100, G2280x, G2540x, P1092, P2100, P2280x and P2540x |
| Data Rates | 1Gb/s and 10Gb/s |
| Form Factor | Standard SFP / SFP+ (for 10Gb/s) |
| Compatible with | SFP+ MSA and SFF-8431 and SFF8432 specifications |
| Power Consumption | Up to 0.2W |
| Operating Voltage | 3.3V (supplied by connected devices) |
| Environmental Range | Operating@ 0°C / 32°F to 70°C / 158°F 0% to 85% relative humidity (non condensing) Storage: -40°C / -40°F to 85°C / 185°F |
| Dimensions | 3m length |
