Description
Description:

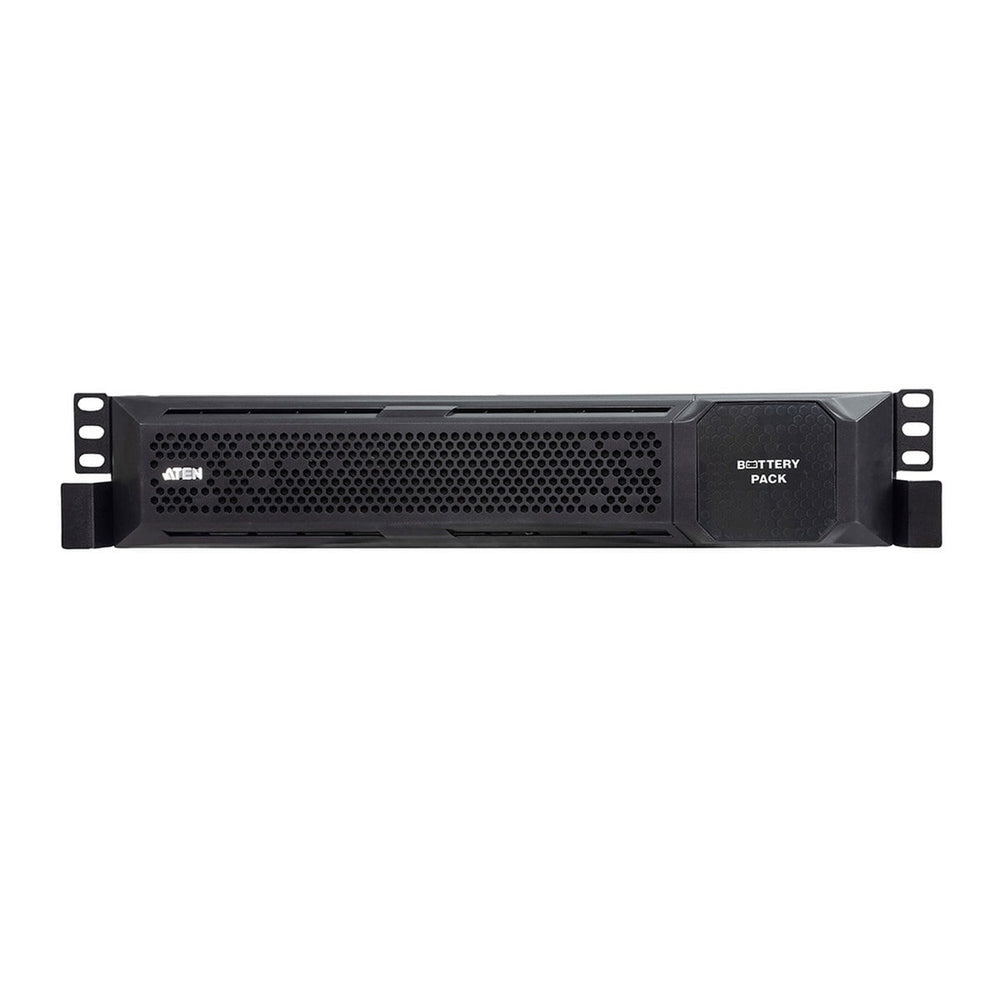

Aten's BP36V18AHUPS External Battery Pack extends battery runtime when used with Aten's UPS systems. Users will have an extra time to save valuable data from any unexpected power shutdowns. The additional external battery for the OL1500HV comprises of six 9AH batteries in total.
This optional battery provides extended run time over standard internal battery and critically delivers extra time to save valuable data from any unexpected power shutdowns.
The Aten OL1500HV Professional Online UPS provides emergency power to a load when the input power source or the mains fails. With True Double Conversion, programmable power management outlets and Emergency Power Off function (EPO) you can keep those critical services running. For further details, please see the related items section.
Features:
- Additional external battery for Aten OL1500HV UPS, 2U
- Provides extended run time over standard internal battery
- Extra time to save valuable data from any unexpected power shutdowns
- Provides emergency power to a load when the input power source or the mains fails
Specifications:
| Nominal Input and Output Voltage | 36V |
| Total Maximum Output Current | 50A Max |
| Battery Type | Sealed lead acid |
| Battery Size | 12V/9Ah |
| Battery Quantity | 6 |
| Environmental | Operating: 0°C / 32°F to 40°C / 104°F Storage: -15°C / 5°F to 45°C / 113°F Relative Humidity: 0% to 90% non condensing |
| Dimensions | Height: 41cm / 16.14" Width: 43.8cm / 17.24" Length: 8.80cm / 3.46" |
| Weight | 21.50kg / 47.36lbs |
| Certifications | UL,CE RoHS Compliant |
| Included | 1 x battery pack 1x rack mounting kit 1 x rail slide kit 1 x battery cable 1 x tower extend stand |
User guides
Download User Guides:
Data Sheet
User Manual
ATEN UPS Runtime Table
