Description
Description:
The Ubiquiti UDW UniFi Dream Wall Wi-Fi 6 Network Appliance is a wall mountable UniFi OS console with a built in security gateway, high speed access point, network video recorder and PoE switch.
The Ubiquiti UniFi Dream Machine Pro is an all in one appliance for a single scalable network suitable for offices, retail, hospitality or advanced home user environments. Powered by a 1.7 GHz quad core processor, the UDM Pro combines high performance and multiple functions into a single 1U rackmount device.
This feature rich, next gen console is equipped with 17 GbE RJ45 ports, including 12 with PoE output 4 x PoE, 4 x PoE+ and 4 x PoE++, 3 x multi-gigabit WAN/LAN ports and a dual band WiFi radio with a 2.7 Gbps aggregate throughput rate to give you the power to build reliable and fast networks that support a variety of local and remote clients.
The Dream Wall also has a 4.7" LCM colour touchscreen for convenient status monitoring and a built in Bluetooth management radio to expedite your setup and configuration process via the UniFi Network application web or mobile.
The Dream Wall is a powerful wall mounted UniFi OS Console designed to be a standalone and space saving deployment hosting solution.
Features:
- Wall mountable UniFi OS console
- Dual band Wi-Fi radio with a 2.7 Gbps aggregate throughput rate. 2.4 GHz: 300 Mbps or 5 GHz: 2.4 Gbps
- Dual WAN ports 1 x 10G SFP+ 1 x 2.5GbE RJ45
- 17 x GbE RJ45 ports, including 4 x PoE, 4 x PoE+and 4 x PoE ++
- 1 x 10G SFP+ Port
- Dedicated Bluetooth management radio for streamlined configuration
- 4.7" LCM colour touchscreen
- 128 GB integrated storage for full UniFi OS Application experience
- Micro SD memory card expansion slot. Requires a memory card with at least 128 GB of storage
- Designed to be a standalone and space saving deployment hosting solution
- Supports redundant power resources

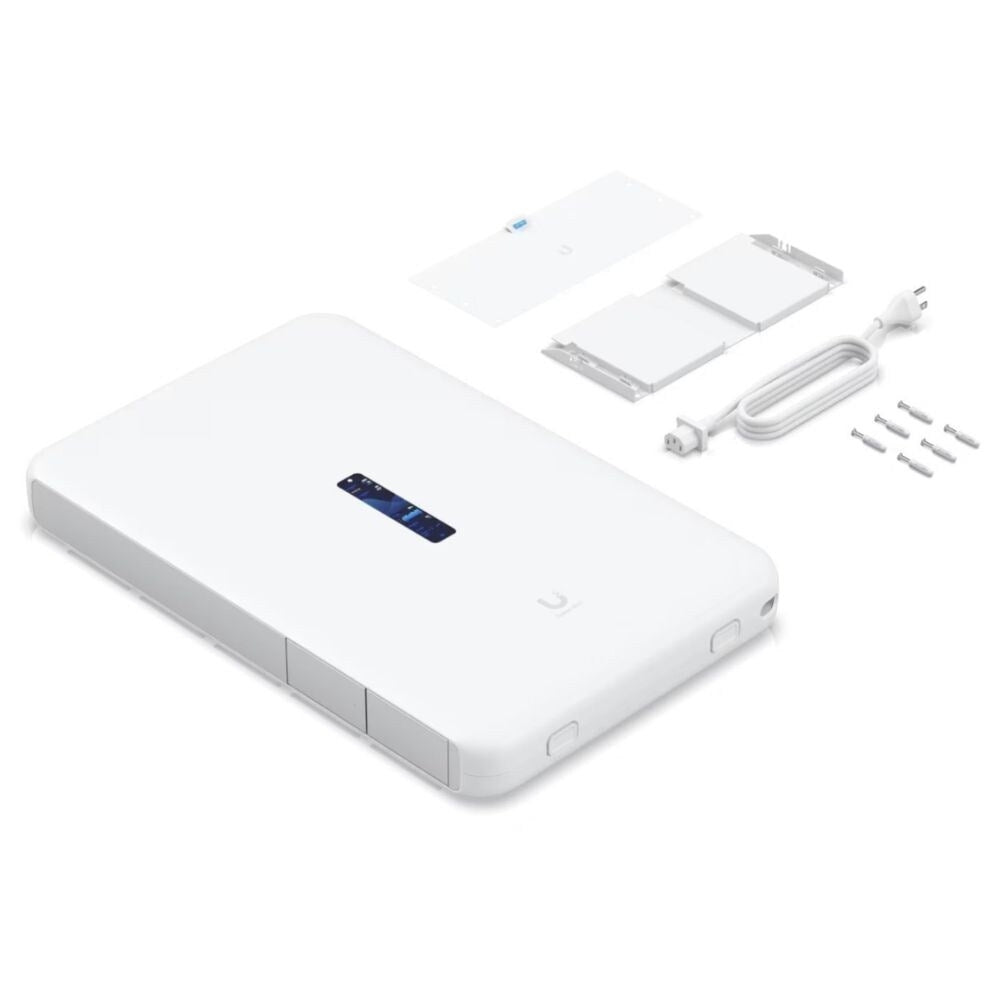

- Includes a wall mount, screw kits and a power cord
Specifications:
| Processor | Quad core ARM® Cortex® A57 at 1.7GHz |
| System Memory | 4GB DDR4 |
| On Board Storage | 16 GB eMMC Integrated 128 GB SSD Pre installed 512 GB microSD card |
| Expansion Slot | Micro SD memory card |
| Management Interface | Ethernet Bluetooth WiFi |
| LCM Display | 4.7" touchscreen |
| Network | |
| LAN 10/100/1000 RJ45 Ports | 17 x GbE RJ45 Ports |
| LAN Uplink Ports | 1 x 10 Gbps SFP + |
| LAN Ports | 4 x 1Gbps RJ45 |
| WAN Ports | 1 x 2.5 GbE RJ45 Port |
| WAN Uplink Ports | 1 x 10 Gbps SFP + |
| PoE Interfaces | 4 x PoE 802.3af 4 x PoE + 802.3at 4 x PoE ++ 802.3bt |
| PoE Budget | 420W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage Range PoE | PoE: 44 to 57V PoE+/PoE++: 50 to 57V |
| Wi-Fi | |
| Wi-Fi | 802.11a/b/g/n/ac/ax |
| Antenna Gain | 2.4 GHz: 5.9 dBi 5 GHz: 6 dBi |
| PHY Rate | 2.4 GHz: 300 Mbps 5 GHz : 2.4 Gbps |
| Radio Streams | 2.4 GHz : 2 x 2 5 GHz: 4 x 4 |
| SSID Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| Concurrent Clients | 300 + |
| Gateway Features | |
| IDS/IPS Throughput | 3.5 Gbps |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi access points Application, domain and country based QoS Application and device type identification Additional internet failover with LTE backup Internet quality and outage reporting |
| Next Generation Security | Application aware firewall rules Signature based IPS or IDS threat detection Content, country, domain and ad filtering VLAN/subnet based traffic segmentation Full stateful firewall |
| Advanced Networking | License free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site to site VPN One click Teleport and Identity VPN Policy based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support |
| Power Method | Universal AC input 100 to 40V AC, 7A Max 50/60Hz |
| Power Supply | Two hot swappable AC/DC 550W PSU* *Comes with one pre installed PSU |
| Max Power Consumption | 532 in PoE output |
| Operating Temperature | -10°C / 14°F to 40°C / 104°F Relative Humidity: 5% to 95% non condensing |
| Dimensions | Height: 549mm / 21.6" Width: 342mm / 13.5" Depth: 62mm / 2.4" |
| Weight | 8.6kg / 19lb |
| Mounting Options | Wall mounting |
| Included | UK power supply 6 x M4 screws and raw plugs 1 x Wall mount bracket |
User guides
Download User Guides:
Unifi Brochure
Quick Install Guide
DoC
