The Ubiquiti USW-Flex UniFi Layer 2 Managed Desktop Gigabit PoE Switch is a configurable Layer 2 Gigabit switch with auto sensing 802.3af PoE. It offers 5 x RJ45 Gigabit Ethernet ports, providing one PoE input and four PoE output links to your devices.
Build and expand your network with the UniFi Switch, part of the UniFi Enterprise System. This USW-FLEX switch is a configurable Layer 2 Gigabit switch with auto sensing 802.3af PoE.
The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches, USW-Pro-24-PoE, as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing, sold separately, and offers versatile mounting options.
Managed and configured by the UniFi Controller or UniFi Mobile app, this switch offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.
Features:

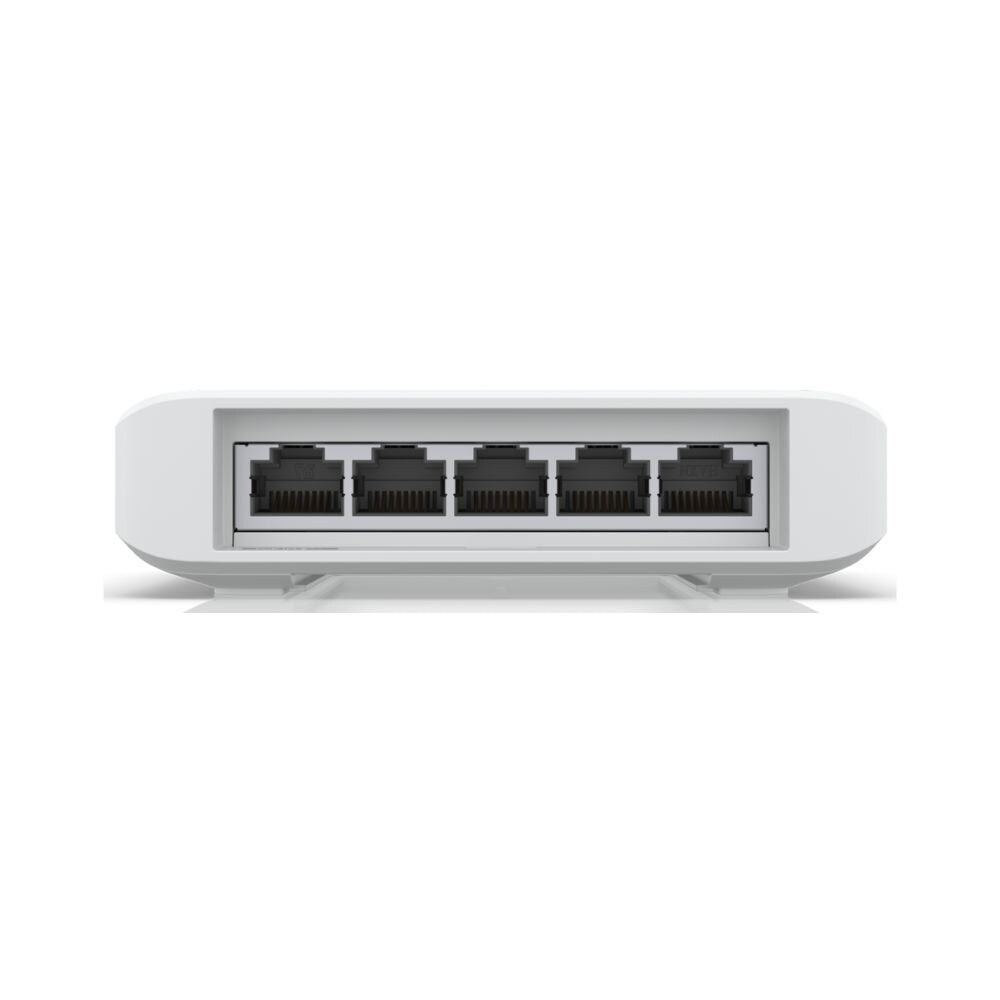

- 5 x 10/100/1000 Gigabit Ethernet RJ45 ports
- 4 x ports offer auto sensing 802.3af PoE output to power multiple devices on the network
- Total PoE budget of 46W
- Indoor or outdoor design with versatile mounts
- Fanless design for quiet operation
- Ideal for small office and home networks
- Wall mounting fittings included
Specifications:
| 10/100/1000 RJ45 Ports | 5 x GbE RJ45 ports |
| PoE Power Input | 6W When powered with a PoE++ switch or a 60W PoE adaptor. Sold separately |
| PoE+ Enabled Ports 802.3af/at | 4 |
| Max Power Per Port | 15.4W |
| Throughput | 5 Gbps |
| Fan | Fanless |
| Switch Management | UniFi Network Controller |
| Switch Management Interface | Interface is 1G RJ45 |
| Power Supply | PoE/PoE+: Pins 1, 2+; 3, 6- PoE++ Pins: 1, 2+; 3, 6- and 4, 5+; 7, 8- 50V/60W PoE adaptor. Not included PoE: 44 to 57V DC PoE+/PoE++: 50 to 57V DC |
| LCM Display | System: Status Ethernet: PoE Speed/link/activity PoE: Link/activity |
| Operating Temperature | 46W PoE output: -40°C / -40°F to 55°C / 131°F 25W PoE output: -40°C / -40°F to 65°C / 149°F Relative Humidity: 5 to 95% non condensing |
| Dimensions | Height: 107.1mm / 4.2" Width: 122.5mm / 4.8" Depth: 28 mm / 1.1" |
| Weight | 230g / 8.1oz |

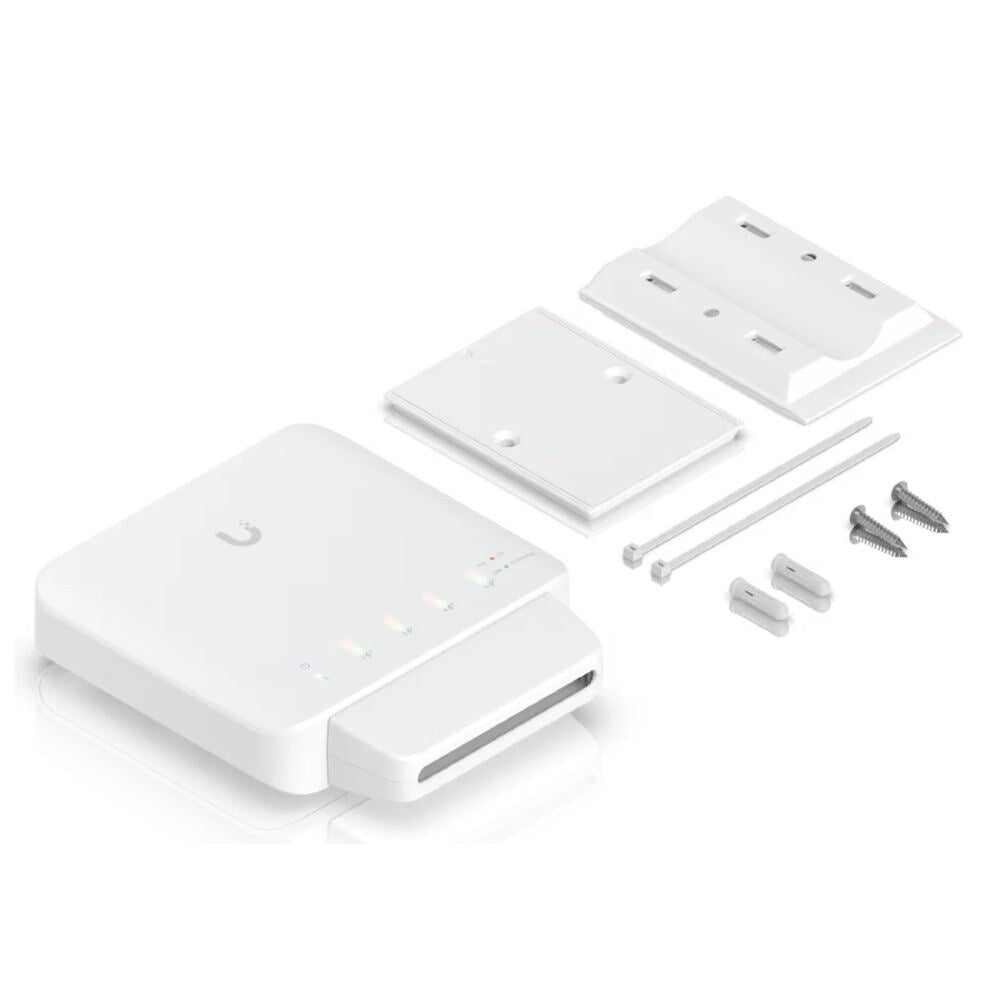

| Included | 1 x Wall mount 1 x Pole mount 1 x Port cover 2 x Mounting screws 2 x Screw anchors 2 x Zip ties |
